Light Universal Reserve Bridals (1 pair) | Apco Aviation

$62.99
Write a Review
Adding to cart… The item has been added

1 pair of Light Universal Apco Reserve Bridals.

Apco Light Universal Bridle made from this new material, will be offered alongside our existing Universal Bridle. The smart design of the Universal Bridles allows for connecting the reserve parachute to the harness without any metal links, further reducing weight and improving safety and strength.

The webbing is constructed from Dyneema fibers, only 12mm. wide, rated for over 1,700 [DaN]. The new bridles are stronger than before, allow for smaller weight and packing volume, and due to the material's mechanical properties, reduce opening shock by offering higher elasticity.

ASSEMBLY INSTRUCTIONS



Step 1

Expose shoulder bridle loop connection

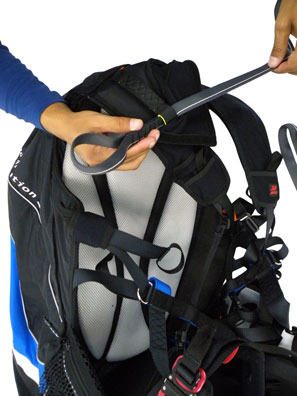

Step 2

Thread the bridle through the loop


Step 3

Loop the bridle through itself

Step 4

Tighten the bridle


Step 5

Bridles connected to the shoulder loops

Step 6

Prepare the Mayday to be connected


Step 7

Heat shrink recommended, but not obligatory

Step 8

Thread the bridle through the loop of Mayday bridle


Step 9

Push the Mayday through the wider bridle loop

Step 10

Push the Mayday through the wider bridle loop


Step 11

Mayday and bridle looped

Step 12




Step 13



Step 14

Mayday bridle and Universal bridle connected


Step 15

Tighten each bridle separately. Make sure there is no slack left on each bridle loop

Step 16

Heat shrink the connection to fix the loop

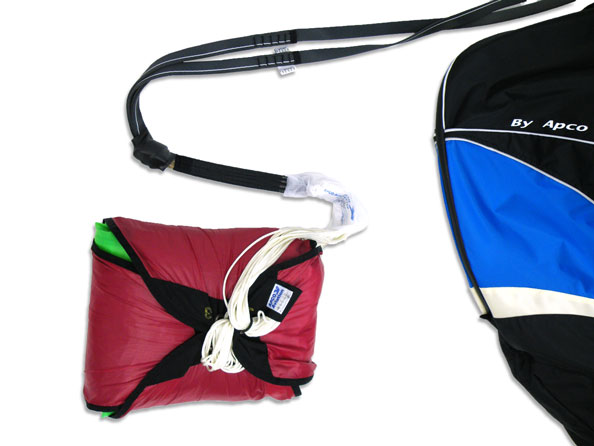

Step 17

Final configuration
